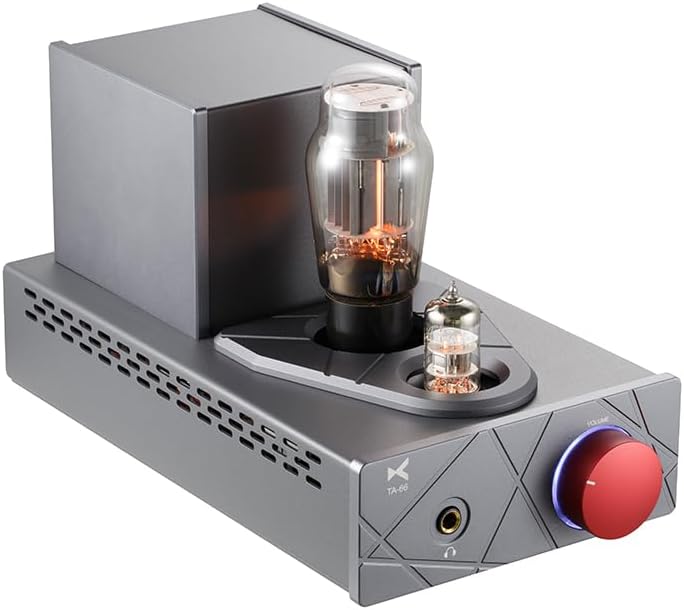

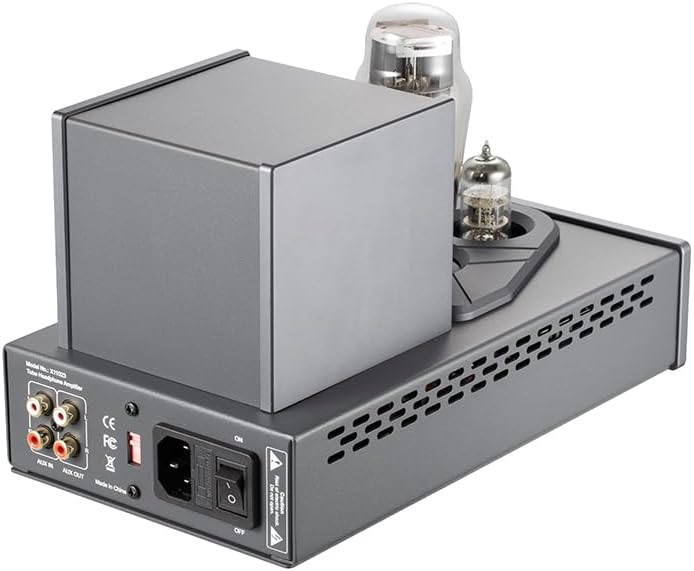

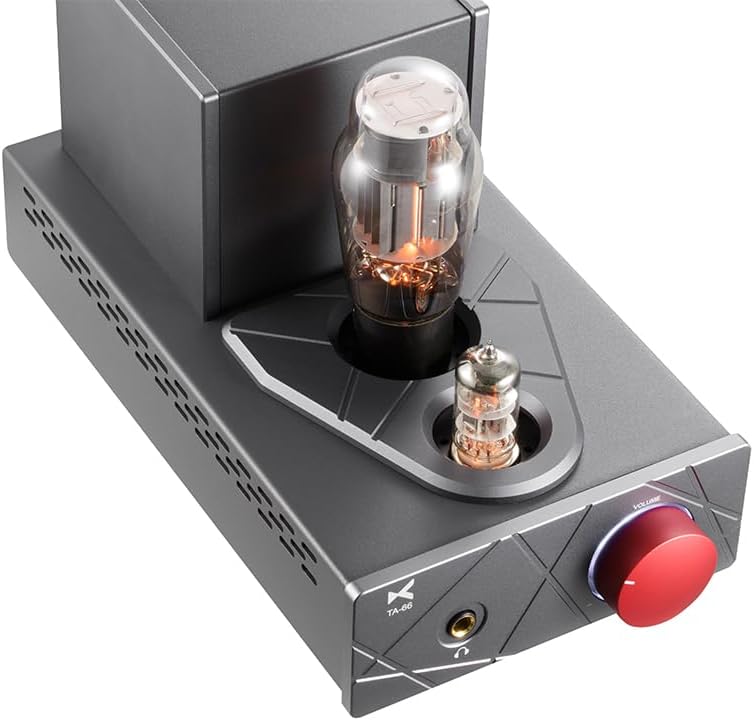

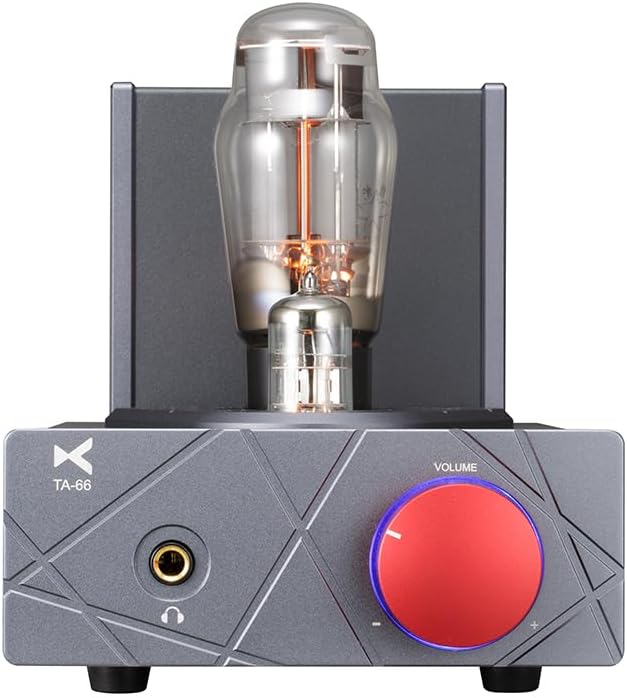

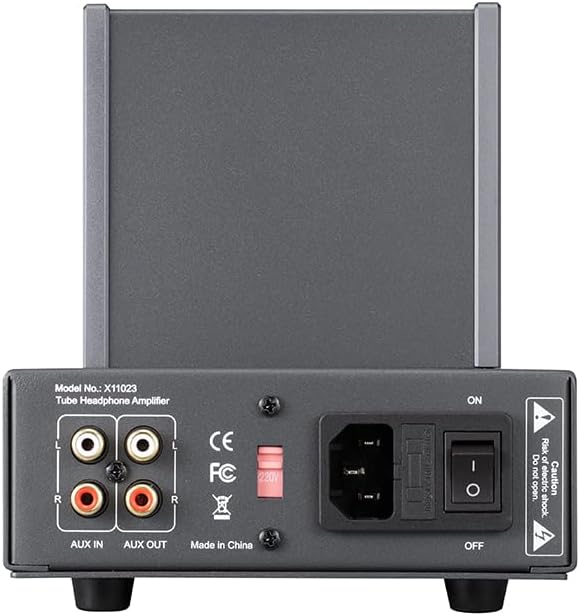

xDuoo TA-66
€259.00*
Not in stock
High-Performance Tube Preamplifier
- 6N2 tube for the preamplifier
- 6N5P tube for the buffer
- Step-by-step potentiometer
- Line-out as a preamplifier
- Professional-grade resistors and capacitors
- Point-to-point wiring for authentic sound
- Aluminum alloy chassis with sandblasted finish
6N2 tube for preamp
Delivers a smooth and exquisite sound through the use of the 6N2 tube in the preamp stage.
6N5P tube for buffer
Smooths and refines the sound through the use of the 6N5P tube in the buffer stage.
Step potentiometer
Eliminates the problem of volume imbalance with a step potentiometer, ensuring balanced volume levels.
Line output as a preamplifier
Features a line output that functions as a preamplifier for various audio amplifiers or active speakers using the tube and volume control, thereby improving sound quality.
Professional Resistors and Capacitors
Uses xDuoo custom-made metal-polyester film capacitors as coupling capacitors for the tube output, ensuring professional-grade audio performance.
Point-to-point wiring for authentic sound
Uses point-to-point soldering with copper wires to construct the tube circuitry. This method minimizes wiring paths, reduces interference, and ensures a clean circuit, resulting in authentic sound reproduction that remains true to the characteristics of vacuum tubes.
Aluminum alloy chassis with sandblasted finish
Features a high-quality, sandblasted finish and a robust aluminum alloy chassis that is both aesthetically pleasing and provides effective protection against external interference.
Technical Details
Power supply: AC 110 V (100–120 V) / 220 V (220–240 V)
Output power: 200 mW (300 Ω load)
Headphone jack: 6.35 mm
Frequency range: 10 Hz to 30 kHz (+1 dB)
Gain: +18 dB
THD+N: 0.08% (1 kHz at 300 Ω load)
Signal-to-noise ratio: 107 dB
Recommended headphone impedance: 60 Ω to 600 Ω
Dimensions: 29.0 x 15.3 x 18.4 cm (L x W x H)
Weight: 5.0 kg
Package contents
1 x xDuoo TA-66
User manual
