iBasso DC04 Ultra
€129.00*
Not in stock
USB-DAC & AMP
- 980mW + 980mW @ 32Ω Output
- Supports of 3.5mm microphone, call functionality
- CNC stainless steel chassis
- Dual CS43198 flagship DACs, THD+N: -119dB
- FPGA + Dual fs oscillators
- PCM 32bit/768kHz and DSD512 support
- Multi-color display + physical buttons for easy operation
- Full-featured Android APK + 10-band PEQ
- 4.4mm and 3.5mm Outputs
- Supports UAC 1.0 and UAC 2.0 protocols
An Ultra-grade Dongle
DC04U is not just an evolution of the DC04PRO, but a complete "Ultra-grade" overhaul. With a powerful output of 980mW + 980mW @ 32Ω, support for 3.5mm microphone calls, and a stainless steel shell, it delivers a comprehensive upgrade in both functionality and user experience. The DC04U is a dongle with exceptional driving power and outstanding usability. Compared to the DC04PRO, its power consumption is slightly higher by 3.6%, but its effective drive power is increased by 2.5 times, demonstrating excellent power efficiency.
Peak Driving Ability
Always "Desktop Mode"
The DC04U requires no external power supply while continuously delivering a stable output of up to 980mW + 980mW @ 32Ω. Driving in-ear monitors? A piece of cake. Powering full size headphones? effortlessly. No external power needed, fully unlocking the potential of various headphones. The dongle is now stepping into the era of watt-level output power!
Multi-color Display
A More Vibrant User Experience
The 0.96 inch multi-color display features dynamic visuals, perfectly blending a sense of technology with practicality. The three physical buttons on the side provide clear tactile feedback for volume adjustment, filter switching, gain switching, and channel balance setting... From basic operations to fine-tuning settings, everything can be done with a single button press directly on the device, without relying on APPs.
Dual CS43198
The Flagship DAC With A New Feature
Featuring dual CS43198 flagship DAC chips which creates a four-channel true balanced circuit. The DC04U supports PCM 768kHz / DSD 512 hardware decoding and uses DRE dynamic enhancement to perfectly eliminate 0dB distortion. Leveraging iBasso's many years of refined tuning experience, the DC04U fully unlocks the potential of this "old friend": delivering clear sound, expansive soundstage, and a naturally pleasing listening experience.
FPGA + Femtosecond Oscillator
Designed for Exceptional Sound Quality
Exceptional sound quality begins with a precise clock and data reproduction. The DC04U utilizes iBasso's accumulated FPGA audio algorithms, paired with dual femtosecond oscillators. This structure significantly reduces jitter during digital signal transmission, ensuring that the entire transmission chain delivers pure audio signals, resulting in a more authentic, clearer, and more natural listening experience.
Balanced Headphone Amplifier
Power Supply Allows ±0.1V Precise Adjustment
Equipped with an independent four-channel balanced headphone amplifier circuit, featuring a refined signal amplification path is designed to achieve superior channel separation and high driving ability. The headphone amplifier power supply ranges from ±4V to ±6V, with each level adjustable in ±0.1V increments, offering more versatile options. Whether for in-ear monitors or full-size headphones, it can drive them with ease.
APK+PEQ
Android APK Upgraded, Support of 10-band PEQ
With the Android APK, all functions and settings are accessible. Powered by a high-performance DSP chip, it includes 7 preset EQ and 3 customizable EQ options, allowing free adjustments to suit various listening preferences. Through the iBasso UAC APK, you can achieve detailed tuning with a 10-band PEQ., personalized just for you!
100 levels of hardware volume adjustment
5 digital filter options
3 options of high, medium, and low gain
20 levels of channel balance adjustment
3 DRE mode selections
10-bands of PEQ
2 dynamic/static theme options
7 Colors of theme options
2 UAC 1.0 / 2.0 protocols

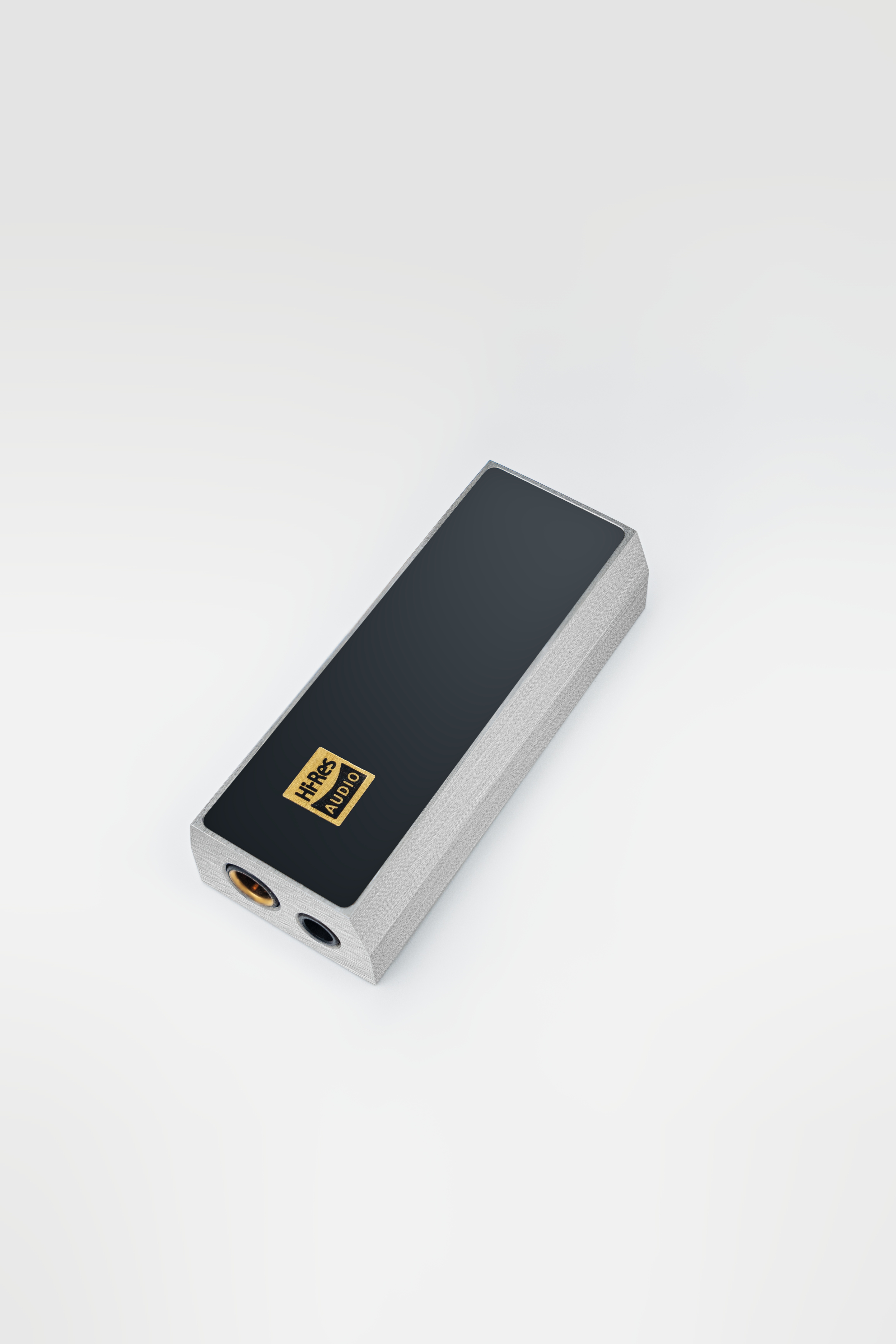

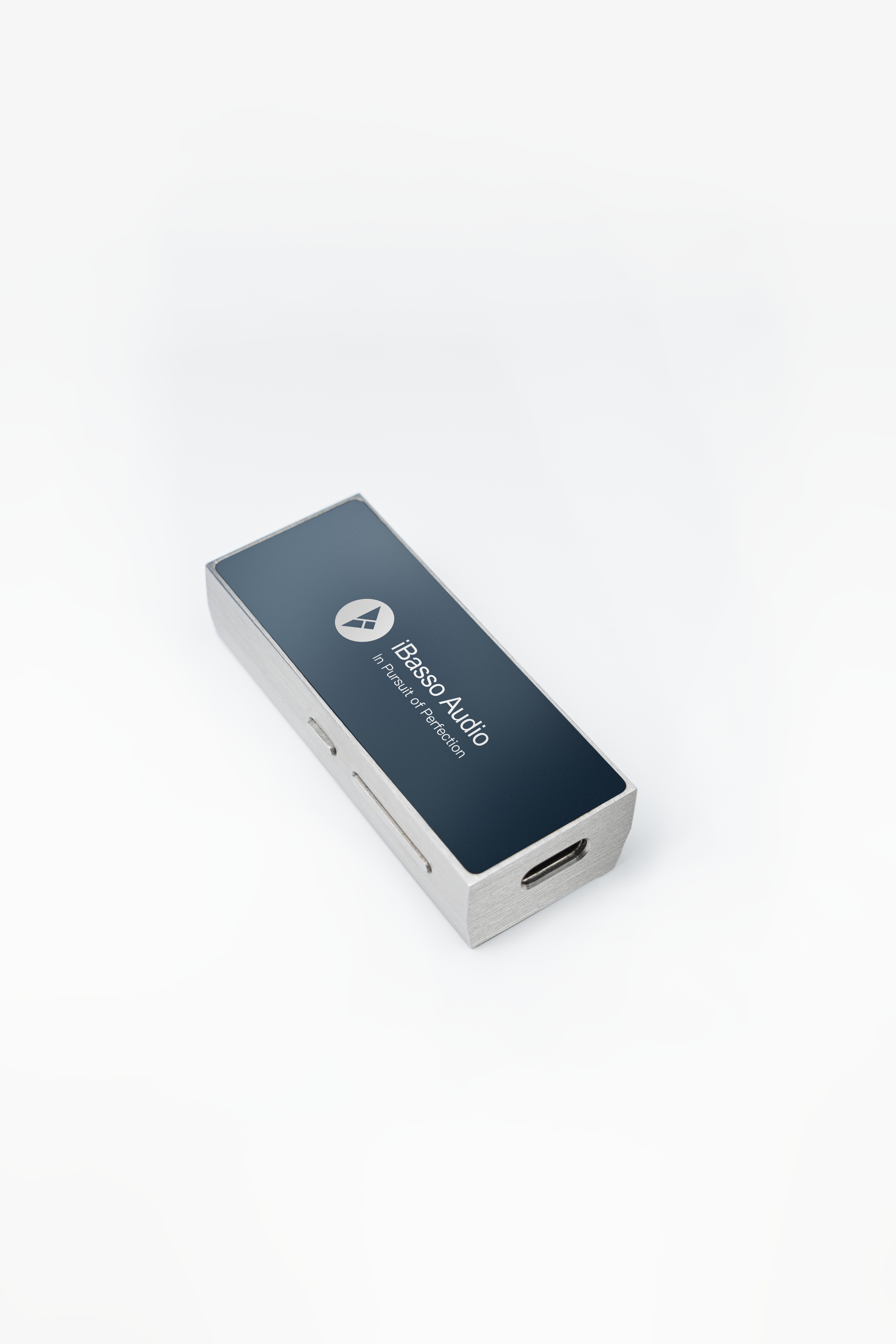

Tough Sound Quality, Tough Stainless Steel Chassis
Sound quality confidently rivals the best, and the housing is equally tough. Crafted from stainless steel with CNC precision machining, the enclosure's strength far surpasses that of ordinary aluminum alloys, effectively resisting daily bumps and scratches. The brushed finish reflecting the aesthetic pursuit of mechanical artistry.

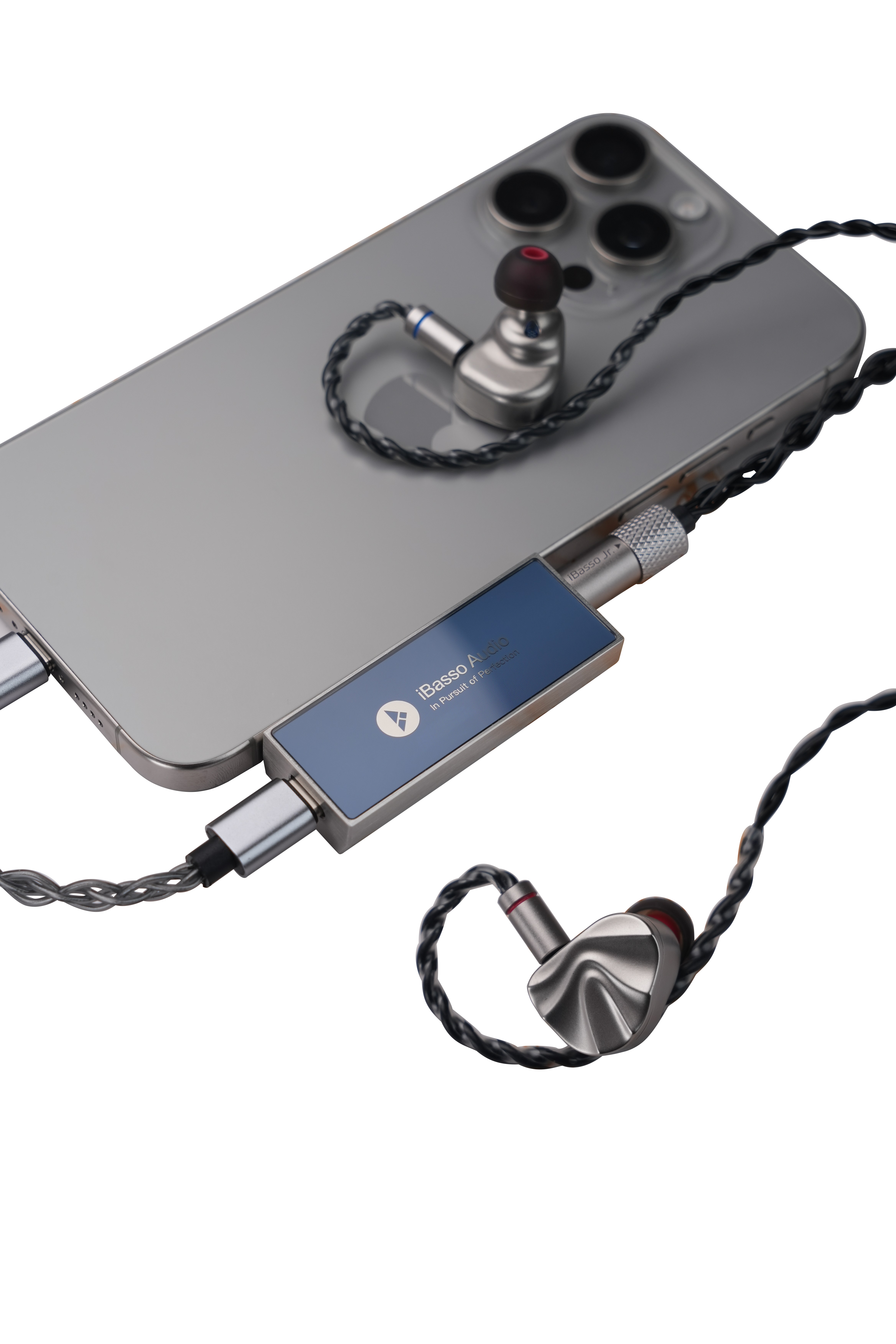

Compatibility With Smartphones, Computers, & Gaming Consoles
Supports of 3.5mm Microphone
The DC04U supports seamless switching between UAC 2.0 and UAC 1.0 protocols and is widely compatible with various device platforms. The 3.5mm interface also supports SPDIF output and microphone calls.
UAC 2.0 Mode:
For connecting to iOS, Android smartphones, tablets, and also supports Windows, Mac OS, and Linux computers.
UAC 1.0 Mode:
Instantly transforms into an external sound card for gaming consoles like Switch 2 and PS5. Gaming sound quality has never been so clear and immersive, enhancing your gaming experience.
SPDIF Mode:
Enables PCM 384kHz and DSD128 DoP digital signal transmission. Turn on the SPDIF output mode via internal settings or iBasso Android UAC APP to allow the DC04U to be connected to an external DAC.
Microphone On/Off:
Microphone can be toggled on or off via the internal settings or our UAC APP. The 3.5mm interface supports high quality microphone calls (CTIA protocol), making gaming chats more enjoyable and helping you secure victory and reach the top.
Technical Specifications
DAC chipset: Dual Cirrus Logic CS43198
PCM: Up to 32-bit/768 kHz
DSD: Native DSD 512x
Weight: 37.2 g
Dimensions: 58 mm × 23.5 mm × 13.1 mm
4.4-mm balanced output:
THD+N: -119 dB (0.00011%) at 1 kHz and 300 Ω load
Output voltage: 1.5 Vrms (low gain)
4.2 Vrms (medium gain)
6.1 Vrms (high gain)
Output power: 980 mW + 980 mW at 32 Ω
Frequency response: 10 Hz–80 kHz ±0.5 dB
Signal-to-noise ratio: 132 dB
Dynamic range: 132 dB
Output impedance: <0.1 Ω
Crosstalk: 148 dB
3.5-mm single-ended output:
THD+N: -113 dB (0.00022%) at 1 kHz and 300 Ω load
Output voltage: 0.76 Vrms (low gain)
2.1 Vrms (medium gain)
3.0 Vrms (high gain)
Output power: 280 mW + 280 mW at 32 Ω
Frequency response: 5 Hz–75 kHz ±0.5 dB
Signal-to-noise ratio: 126 dB
Dynamic range: 129 dB
Output impedance: <0.1 Ω
Crosstalk: 136 dB
Package contents
DC04U
USB-C to USB-C cable
USB-C to USB-A adapter
User manual
Warranty card
