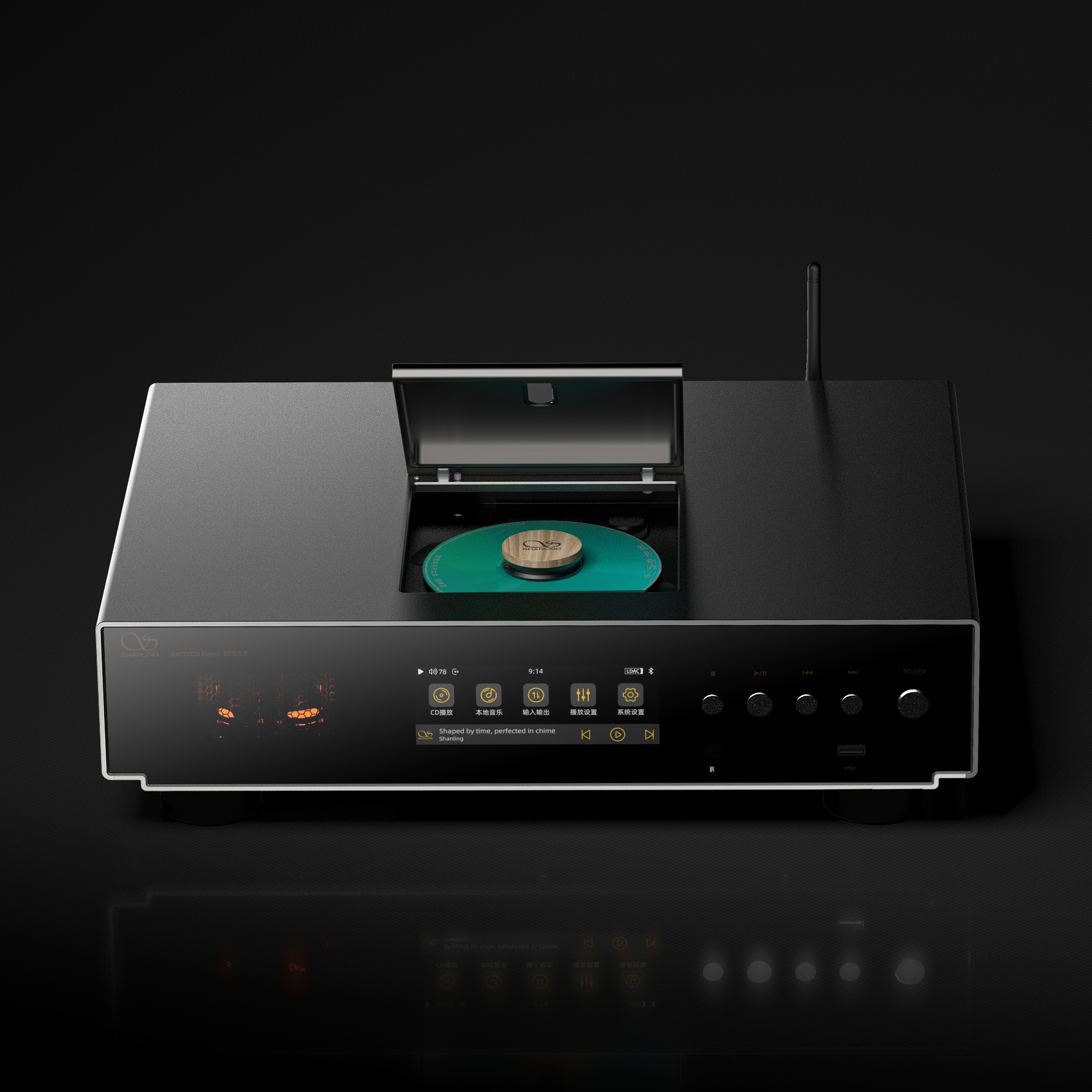

Shanling SCD3.3
€3,790.00*
Not in stock
Product number:
HL02805.1
Product information "Shanling SCD3.3"
High-End SACD Player
- R2R and Tubes in Ultimate Combination
- Proprietary Disc System
- SACD & MQA-CD Playback
- True SACD DSD Output
- 24bit R2R DAC Assembly
- 212x 0.01% Ultra-Precision Resistors
- Second-Generation In-House Module
- Pair of 12AT7 Tubes
- Classic Rich Sound
- Top-Loading Disc Mechanism
- Sturdy CNC-Machined Chassis
- 5-Inch Touch Screen
- Controls Remote Control and Companion App
- USB Drive Playback
- PCM 768 kHz & DSD512
- Bluetooth Input
- Digital Inputs & Outputs
- Advanced I2S Transport
- RCA & XLR Analog Outputs
- Full SACD Support
- True DSD Output
The Most Advanced Disc Mechanism
Proprietary SACD System & HD850 Drive
Special in-house developed system allows SCD3.3 to deliver the full quality of each SACD disc, bringing the true DSD audio to its internal DAC and digital outputs.
True DSD Digital Output
Featuring FPGA-Assisted I2S output with 10 modes, offering Native DSD to almost any I2S-capable DAC on the market. DoP DSD64 available for Coaxial SPDIF Output.
MQA-CD Compatible
Acting as a Full Decoder, delivering 4x unfolded playback of MQA-CDs.
Hybrid, Single-Layer SACD & CDs
Play standard CDs, SACDs and even hybrid discs, which will allow for swift switching between CD and SACD layers.
*Multichannel discs not supported.
Second-Generation R2R Platform
212x 0.01% Ultra-Precision Resistors
SCD3.3 comes with the second generation of the in-house developed DAC, representing a remarkable improvement in its R2R design, putting together 212 0.01% extremely accurate resistors for the 24-bit DAC module, utilizing a 19-bit architecture with a 4-bit compensating code and an assistive push-pull differential circuit.
To put it simply - smooth and natural R2R sound with true High-fidelity precision and clarity.
Classic Hi-Fi
12AT7 Tube Output
Smoothness of Balance and Richness
Continuing the long legacy of the Shanling Tube CD players, the SCD3.3 follows in the footsteps of legendary units such as the CD-T300, CD-T100, and CD3.3. Making the tubes a crucial part of the design, serving as the amplification stage for both RCA and XLR outputs, delivering stunningly smooth and rich character.
Utilizing a pair of 12AT7 tubes, originally designed by renowned audio engineer Dr. Cai Hongren, the mind behind other famous tubes such as 300B or ECC82. Tubes on SCD3.3 were manufactured by Beijing Electron Tube factory and carefully tested and matched for each unit.
Chasing True High-Fidelity
Deeply Optimized Audio Circuit
OPA1612 Low-Pass Filter
MUSES8920E Output Stage
SCD3.3 combines the OPA1612 as the bridge between R2R array and amplification stage with the MUSES operational amplifier on the output stage, together delivering efficient, transparent and current-rich audio output.
Active Crystal Oscillators
Stable Signal Processing
With two independent sets of oscillators, 90MHz/98MHz for the FPGA and 45MHz/49MHz for the XMOS section, the audio circuit of SCD3.3 maintains extremely high precision of signal transmission, significantly reducing jitter for purer sound reproduction.
Multi-Stage Tuning
Expertly Refined Circuit
Featuring only the top-grade parts in the audio path, with experienced Hi-Fi engineers choosing the matching ELNA, Nichicon and Panasonic capacitors for their best placement in the crucial sections of the SCD3.3’s architecture.
Stable Power Supply
Dual R30 Transformers
With two transformers providing up to 66W power, SCD3.3 runs with reduced magnetic flux, minimal phase shift and exceptionally stable power, providing for truly solid foundation for its sound performance.

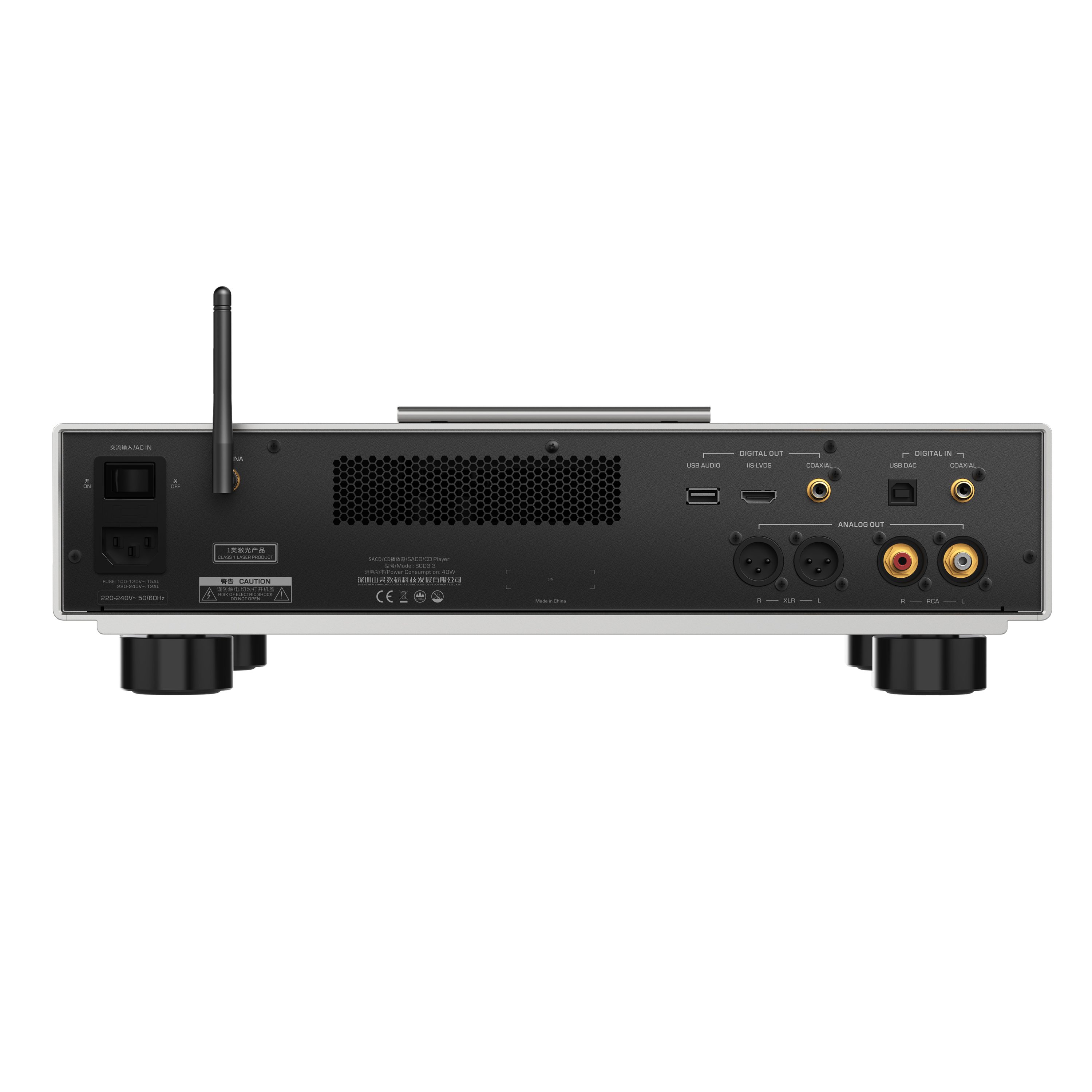

Multifunctional Interfaces
Versatile Part of Hi-Fi Rigs
USB Drive Playback
Play directly and lossless from any Flash drive, HDD or SSD, with full support of Hi-Res audio up to PCM 768kHz and DSD512.
Digital Inputs
Bluetooth / USB / Coaxial
Connect computers over USB, link up with other Hi-Fi sources over SPDIF Coaxial or go fully wireless with Bluetooth streaming from any phone or tablet.
Digital Outputs
I2S / USB / Coaxial
Trio of digital outputs covering anything from vintage Hi-Fi, over simpler USB-only DACs, to the high-end I2S protocol.
Analog Output
RCA/XLR
Offering options for both Line-Out and Pre-Amplifier mode, ideally matching for Active-speakers, headphone amplifiers or Power amplifiers.
Timeless Elegance
Refined Craftmanship

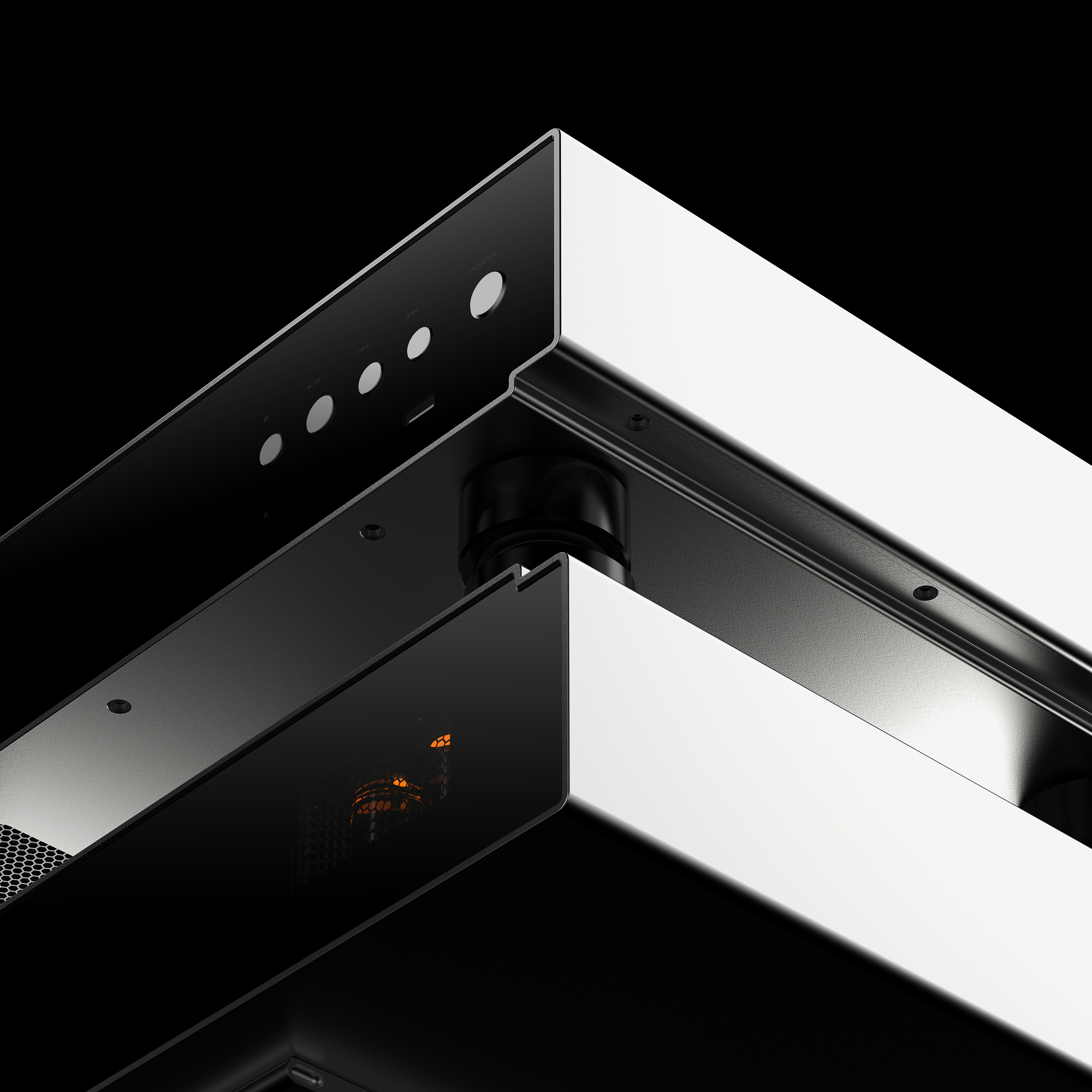

Solid Aluminium CNC Chassis
Robust 9.5mm thick main chassis provides a solid base and helps with the reduction of vibration and noise.

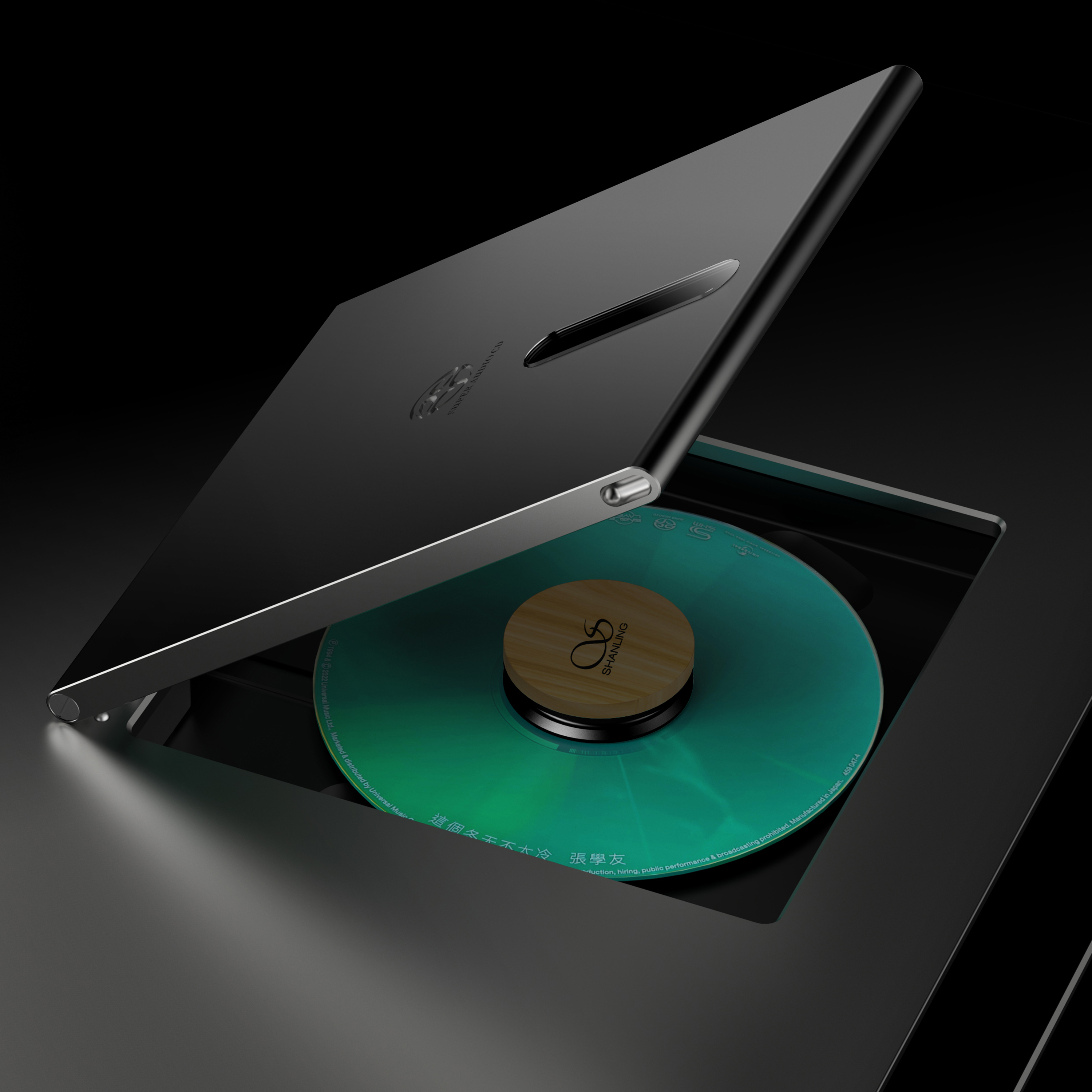

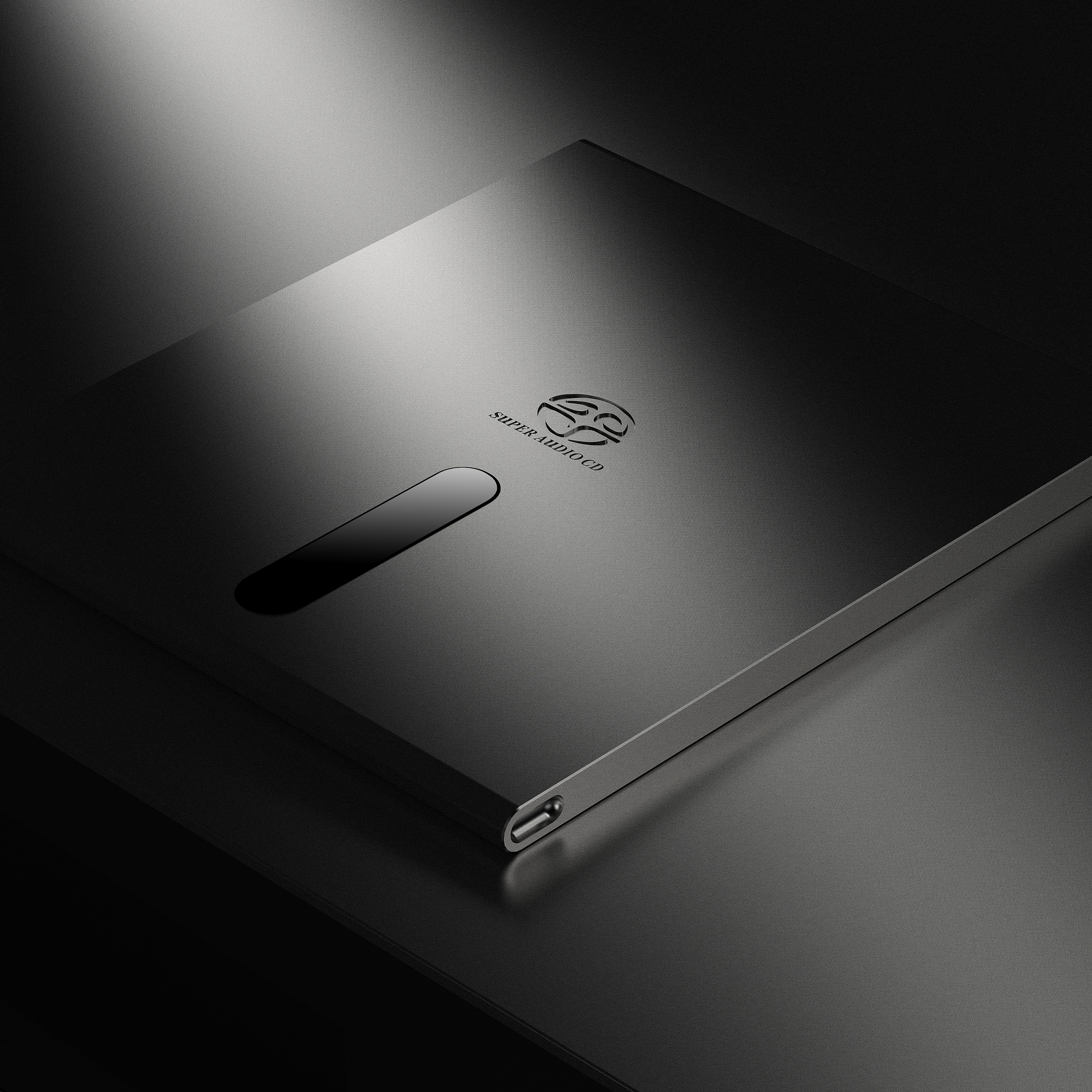

Top Loading Drive
Following the demands of the high-end market, SCD3.3 utilizes a precisely weighted CD puck for extremely stable and even disc reading.

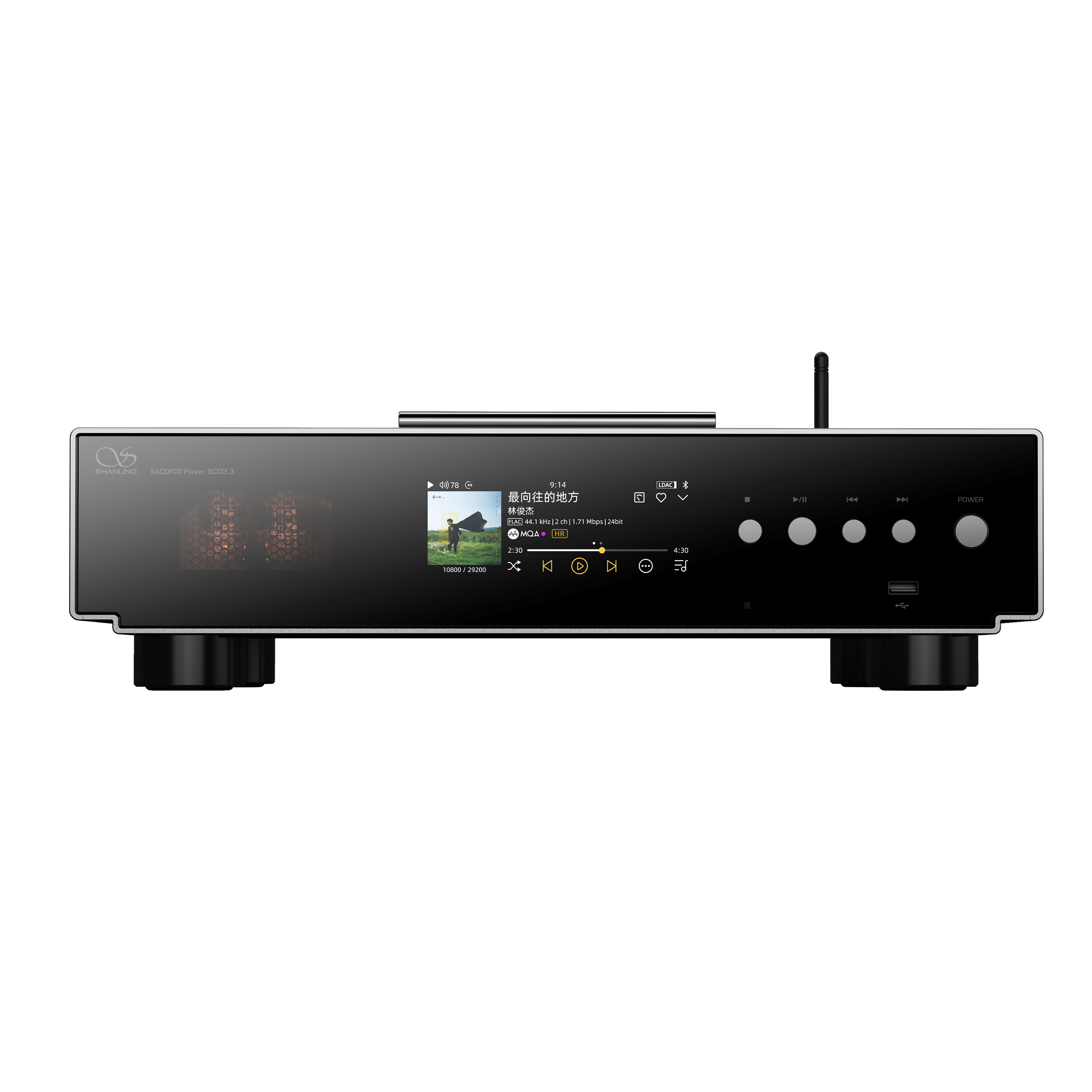

5-Inch Touch Screen
Running an in-house developed system, with pure focus on the music playback, offering a responsive and intuitive user interface.
Tube Display
With a dedicated transparent opening for the direct view on the pair of glowing tubes.
Eddict Player
Companion App
Enhanced Remote Controls
Download the Eddict Player for Android or iOS devices, offering a comfortable remote operation of the USB Drive playback, with easy access to folder structure, albums, artists, and other sorting methods.
Specifications
Specification
Dimensions: 430x319x91mm (LxWxH, without top CD cover)
Net Weight: Approx. 10 kg
Main Processor: Ingenic X2000
Display: 5.0-inch LG touchscreen (854*358)
Power Supply: 66W Dual R30 transformer & 15W power module
Power input: Region locked 100 or 220V
Control Methods: Remote Controller / Touchscreen / Hardware Buttons / Companion App
Playback Modes: SACD/CD, USB DAC, Digital SPDIF Coaxial, Local USB Drive, Bluetooth
USB Receiver Chip: XMOS XU316, up to PCM 768kHz/32bit, DSD512
Bluetooth: BT 5.0 Receiver, supporting LDAC, aptX HD, aptX, AAC, SBC
USB Drive Support: PCM 768kHz/32bit, DSD512 - DSD (.iso, .dsf, .dff, - DST not supported) / ISO / DXD / APE / FLAC / WAV / AIFF / ALF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8 / OPUS
Outputs: Digital I2S, Digital SPDIF Coaxial, USB Audio, RCA & XLR Analog
I2S Output: PCM 768kHz, DSD512 (DSD64 for SACD Playback)
USB Output: PCM 768kHz, DSD512 (Not supported for SACD Playback)
Coaxial SPDIF Output: PCM 192 kHz, DoP DSD64 (Supported for SACD Playback) Line Out
RCA Output
Output Level: 2.45Vrms
Frequency Response: 20Hz-40kHz (-0.3dB)
THD+N: 0.15%
Crosstalk Rejection: 110dB
Dynamic Range: 117dB
Signal-to-Noise Ratio: 117dB
Line Out
XLR Output
Output Level: 4.9Vrms
Frequency Response: 20Hz-40kHz (-0.3dB)
THD+N: 0.15%
Channel Separation: 110dB
Dynamic Range: 117dB
Signal-to-Noise Ratio: 117dB
