Shanling EC Zero AKM
€319.00*
In stock, delivery time: 1-3 days
Product number:
HL02712.1
Product information "Shanling EC Zero AKM"
Portable CD player with AKM DAC
- AKM AK4493S DAC
- Soft, natural sound
- Two SGM8262 amplifiers Balanced amplifier performance
- Extremely stable CD playback
- Active magnetic clamp
- Custom-made CD mechanism
- Error-free disc reading
- USB DAC function
- Supports PCM 768 kHz / DSD512
- Integrated 5500 mAh battery
- External power supply mode included
- Bluetooth transmitter function
- Coaxial/optical digital output
- 3.5 mm and 4.4 mm outputs
- Up to 836 mW at 32 Ω power
- 1x speed CD ripping * to FAT32 USB drives
- High-strength one-piece metal chassis
- Tempered glass chassis
- Tactile volume control
- Intuitive UI system
- Key lock
The next step for Shanling's portable CD players
Active magnetic clamp
The new active magnetic design continuously adjusts its position and pressure on the disc, effectively improving rotation stability significantly reducing unwanted mechanical noise and vibration from the CD drive.
Custom-designed CD system
Equipped with a new compact CD drive system that ensures desktop-level performance with high accuracy while providing seamless playback for all CDs.
Advanced anti-shake systems
EC Zero AKM was developed with a special focus on mobile use and utilizes a range of systems that ensure uninterrupted and skip-free CD playback when listening on the go. Whether in a vertical or horizontal position, while walking or sitting, playback stability remains unchanged.
High-quality construction
Each device undergoes a long testing and calibration process during the production cycle, which guarantees a perfectly balanced and stable CD mechanism that is crucial for ideal disc rotation and audio playback.
The gentle side of high fidelity
AKM AK4493S DAC & Dual SGM Amplifier
AKM DACs play a major role in Shanling's audio designs, with the AK4493S proving its great capabilities in a range of Shanling devices. Now, EC Zero AKM leverages this DAC and Shanling's extensive hi-fi expertise to deliver a warmer-sounding and perfectly natural CD playback on the go.
The headphone section features two SGM8262 amplifiers that deliver transparent and powerful output of up to 836 mW at 32 Ω. With precise 100-step volume control and a fast volume knob, the EC Zero AKM is an excellent addition to both sensitive earbuds and hard-to-drive full-size headphones.
Extended battery life
External power supply at home
The EC Zero AKM is powered by a built-in 5500 mAh battery, offering complete independence and hi-fi playback anywhere, anytime. With the new audio circuitry, battery life is extended to up to 10 hours. For desktop use, simply connect a USB-C power adapter to the EC Zero and switch it to a special external power supply mode to achieve higher output power and maintain the long-term condition of the battery.
10 hours - 3.5 mm output
10 hours - 4.4 mm output
18 hours - Bluetooth transmitter
From earbuds to hi-fi speakers
A truly versatile hi-fi device
Playback modes: CD or USB DAC
Outputs: 3.5 mm and 4.4 mm headphone output
3.5 mm and 4.4 mm line output
3.5 mm SPDIF coaxial/optical output
Bluetooth transmission
Bluetooth V5.3
Connection with Bluetooth headphones or speakers, supports aptX Adaptive, aptX, and SBC codecs.
Technical specifications
Dimensions: 158 x 150 x 28 mm
Weight: 575 g
Screen: 1.68-inch LCD display
USB DAC support: 768 kHz/32-bit and DSD512
DAC: AKM AK4493S
External power supply: USB-C 5 V / 2 A
CD ripping: 1x speed, to FAT32 USB drive, WAV format
Digital output: 3.5 mm combined coaxial/optical SPDIF
Bluetooth version: V5.3 Bluetooth transmitter codecs: aptX Adaptive, aptX, SBC
3.5 mm headphone output
Output power: Low gain: 52 mW at 32 Ω
High gain: 122 mW at 32 Ω
High gain: 213 mW at 32 Ω (external power supply)
THD+N: 0.0004%
Dynamic range: 117 dB
Channel separation: 79 dB
Signal-to-noise ratio: 117 dB
Noise: 111 dB (low gain)
USB DAC frequency response: 20 Hz–40 kHz (-0.5 dB)
CD PLAY frequency response: 20 Hz–20 kHz (-0.5 dB)
Output impedance: 0.6 Ω
4.4 mm headphone output
Output power: Low gain: 211 mW at 32 Ω
High gain: 525 mW at 32 Ω
High gain: 836 mW at 32 Ω (external power supply)
THD+N: 0.0004%
Dynamic range: 119 dB
Channel separation: 103 dB
Signal-to-noise ratio: 119 dB
Noise: 107 dB (low gain)
USB DAC frequency response: 20 Hz–40 kHz (-0.5 dB)
CD PLAY frequency response: 20 Hz–20 kHz (-0.5 dB)
Output impedance: 0.8 Ω
3.5 mm line output
Output voltage: 2.05 Vrms
Frequency response: 20 Hz–40 kHz (-0.5 dB)
THD+N: 0.0005%
Signal-to-noise ratio: 117 dB
4.4 mm line output
Output voltage: 4.1 Vrms
Frequency response: 20 Hz–40 kHz (-0.5 dB)
THD+N: 0.0005%
Signal-to-noise ratio: 119 dB
Informationen zum Hersteller
Portable CD player with AKM DAC
- AKM AK4493S DAC
- Soft, natural sound
- Two SGM8262 amplifiers Balanced amplifier performance
- Extremely stable CD playback
- Active magnetic clamp
- Custom-made CD mechanism
- Error-free disc reading
- USB DAC function
- Supports PCM 768 kHz / DSD512
- Integrated 5500 mAh battery
- External power supply mode included
- Bluetooth transmitter function
- Coaxial/optical digital output
- 3.5 mm and 4.4 mm outputs
- Up to 836 mW at 32 Ω power
- 1x speed CD ripping * to FAT32 USB drives
- High-strength one-piece metal chassis
- Tempered glass chassis
- Tactile volume control
- Intuitive UI system
- Key lock
The next step for Shanling's portable CD players
Active magnetic clamp
The new active magnetic design continuously adjusts its position and pressure on the disc, effectively improving rotation stability significantly reducing unwanted mechanical noise and vibration from the CD drive.
Custom-designed CD system
Equipped with a new compact CD drive system that ensures desktop-level performance with high accuracy while providing seamless playback for all CDs.
Advanced anti-shake systems
EC Zero AKM was developed with a special focus on mobile use and utilizes a range of systems that ensure uninterrupted and skip-free CD playback when listening on the go. Whether in a vertical or horizontal position, while walking or sitting, playback stability remains unchanged.
High-quality construction
Each device undergoes a long testing and calibration process during the production cycle, which guarantees a perfectly balanced and stable CD mechanism that is crucial for ideal disc rotation and audio playback.
The gentle side of high fidelity
AKM AK4493S DAC & Dual SGM Amplifier
AKM DACs play a major role in Shanling's audio designs, with the AK4493S proving its great capabilities in a range of Shanling devices. Now, EC Zero AKM leverages this DAC and Shanling's extensive hi-fi expertise to deliver a warmer-sounding and perfectly natural CD playback on the go.
The headphone section features two SGM8262 amplifiers that deliver transparent and powerful output of up to 836 mW at 32 Ω. With precise 100-step volume control and a fast volume knob, the EC Zero AKM is an excellent addition to both sensitive earbuds and hard-to-drive full-size headphones.
Extended battery life
External power supply at home
The EC Zero AKM is powered by a built-in 5500 mAh battery, offering complete independence and hi-fi playback anywhere, anytime. With the new audio circuitry, battery life is extended to up to 10 hours. For desktop use, simply connect a USB-C power adapter to the EC Zero and switch it to a special external power supply mode to achieve higher output power and maintain the long-term condition of the battery.
10 hours - 3.5 mm output
10 hours - 4.4 mm output
18 hours - Bluetooth transmitter
From earbuds to hi-fi speakers
A truly versatile hi-fi device
Playback modes: CD or USB DAC
Outputs: 3.5 mm and 4.4 mm headphone output
3.5 mm and 4.4 mm line output
3.5 mm SPDIF coaxial/optical output
Bluetooth transmission
Bluetooth V5.3
Connection with Bluetooth headphones or speakers, supports aptX Adaptive, aptX, and SBC codecs.
Technical specifications
Dimensions: 158 x 150 x 28 mm
Weight: 575 g
Screen: 1.68-inch LCD display
USB DAC support: 768 kHz/32-bit and DSD512
DAC: AKM AK4493S
External power supply: USB-C 5 V / 2 A
CD ripping: 1x speed, to FAT32 USB drive, WAV format
Digital output: 3.5 mm combined coaxial/optical SPDIF
Bluetooth version: V5.3 Bluetooth transmitter codecs: aptX Adaptive, aptX, SBC
3.5 mm headphone output
Output power: Low gain: 52 mW at 32 Ω
High gain: 122 mW at 32 Ω
High gain: 213 mW at 32 Ω (external power supply)
THD+N: 0.0004%
Dynamic range: 117 dB
Channel separation: 79 dB
Signal-to-noise ratio: 117 dB
Noise: 111 dB (low gain)
USB DAC frequency response: 20 Hz–40 kHz (-0.5 dB)
CD PLAY frequency response: 20 Hz–20 kHz (-0.5 dB)
Output impedance: 0.6 Ω
4.4 mm headphone output
Output power: Low gain: 211 mW at 32 Ω
High gain: 525 mW at 32 Ω
High gain: 836 mW at 32 Ω (external power supply)
THD+N: 0.0004%
Dynamic range: 119 dB
Channel separation: 103 dB
Signal-to-noise ratio: 119 dB
Noise: 107 dB (low gain)
USB DAC frequency response: 20 Hz–40 kHz (-0.5 dB)
CD PLAY frequency response: 20 Hz–20 kHz (-0.5 dB)
Output impedance: 0.8 Ω
3.5 mm line output
Output voltage: 2.05 Vrms
Frequency response: 20 Hz–40 kHz (-0.5 dB)
THD+N: 0.0005%
Signal-to-noise ratio: 117 dB
4.4 mm line output
Output voltage: 4.1 Vrms
Frequency response: 20 Hz–40 kHz (-0.5 dB)
THD+N: 0.0005%
Signal-to-noise ratio: 119 dB
EU-Verantwortlicher
NT Global Distribution GmbH
Buntentorsdeich 10
28201 Bremen
Deutschland
www.nt-global.de
info@nt-global.com
New

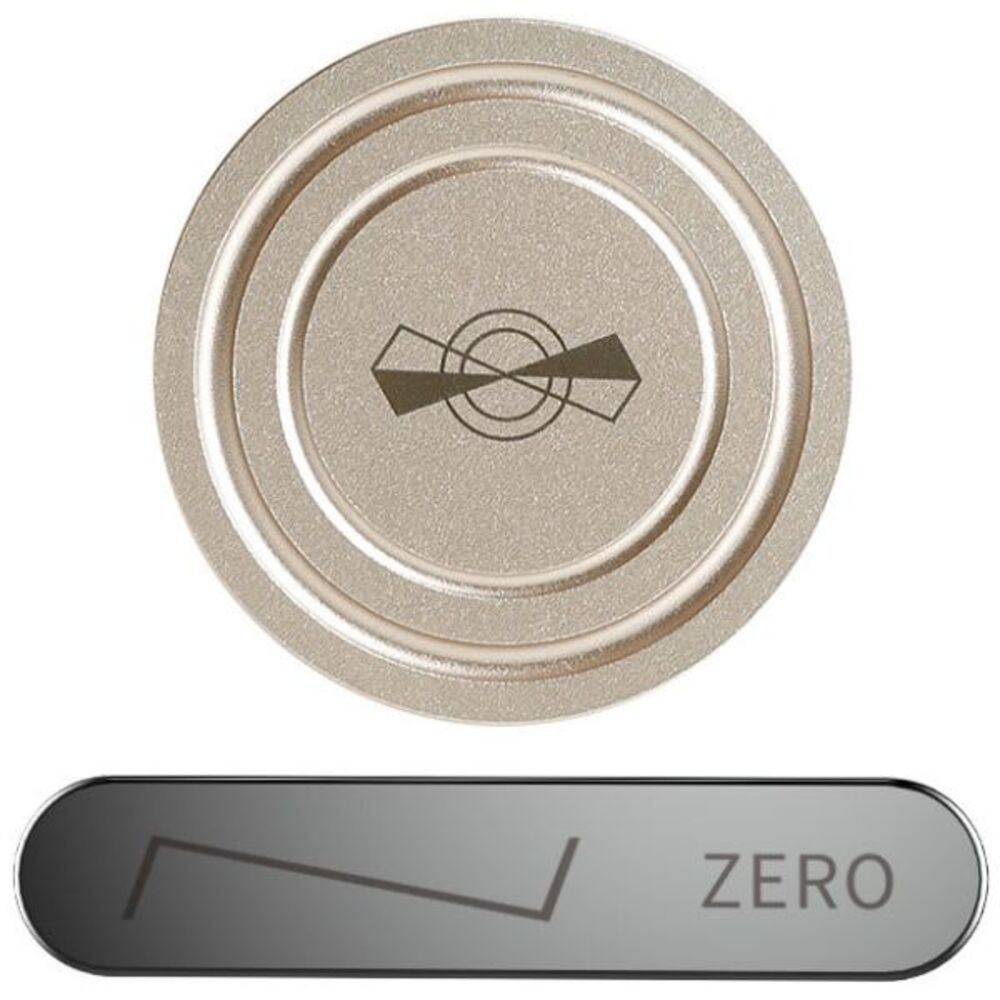

Shanling - EC Zero - Open Lid Mod Kit
